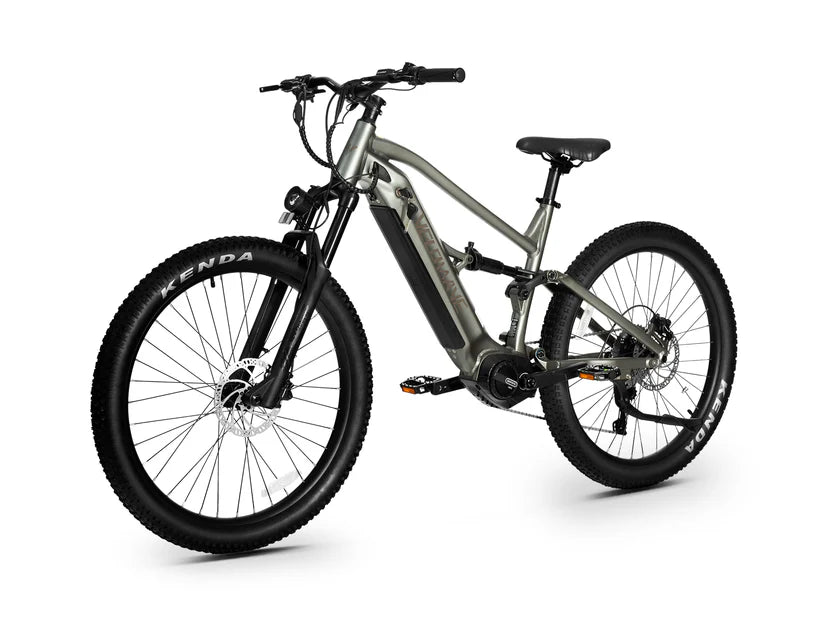

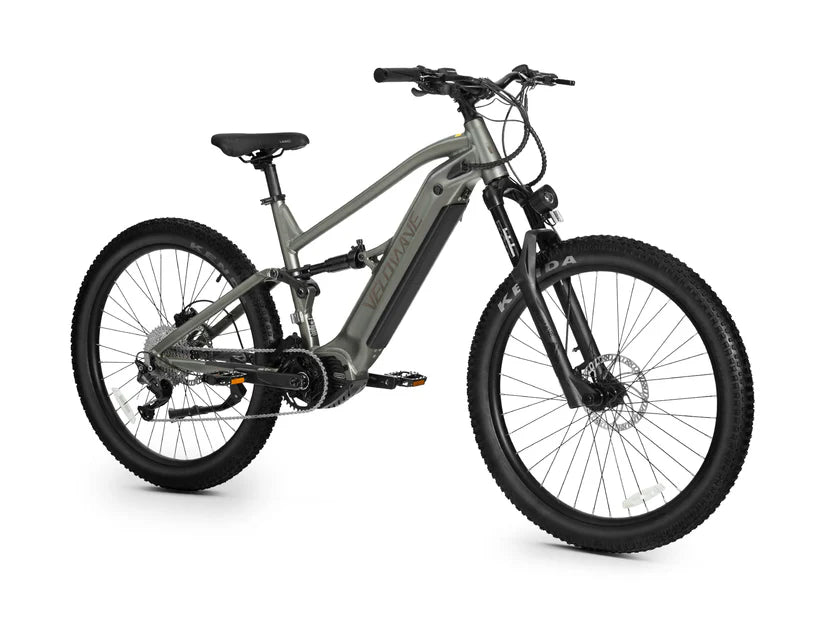

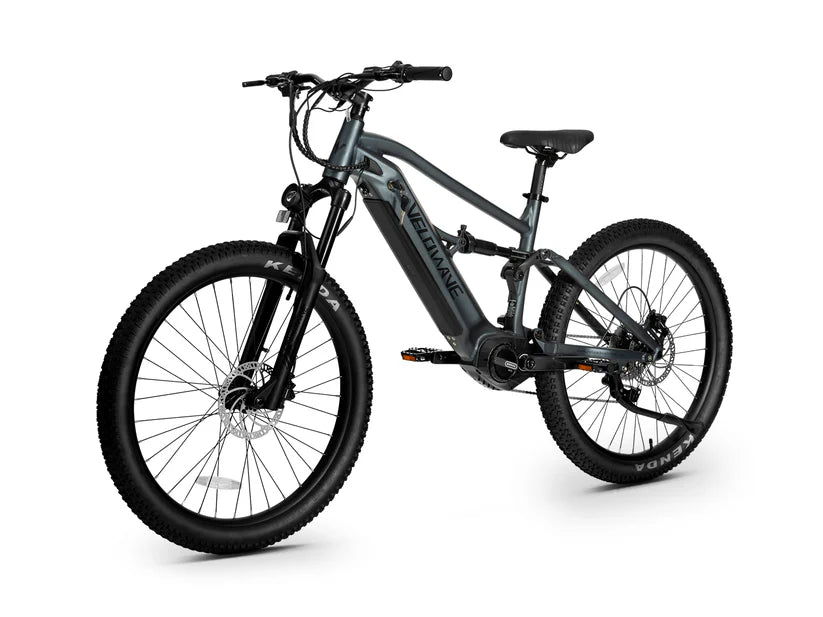

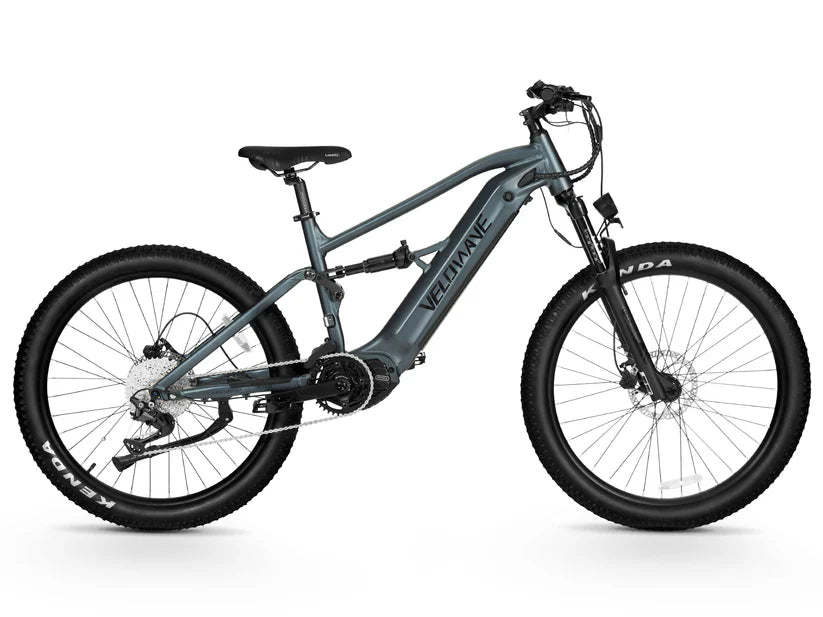

Forest SM MTB
Description
Whether you're exploring challenging trails or commuting through the city, the Forest electric bike combines state-of-the-art technology with rugged durability to elevate every ride. The 500W motor delivers robust performance, with a peak output of 760W and 130Nm of torque, ensuring smooth acceleration and excellent climbing ability. Enjoy a comfortable ride with the adjustable front and rear air suspension, which adapts to varying terrains and rider preferences.
Key Features
Powerful motor
Long-Lasting Battery
Premium Suspension

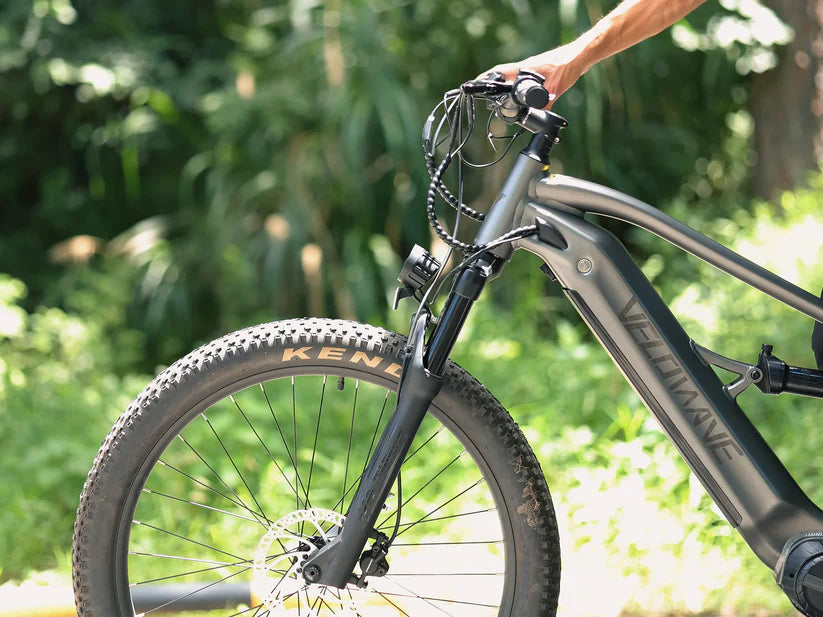

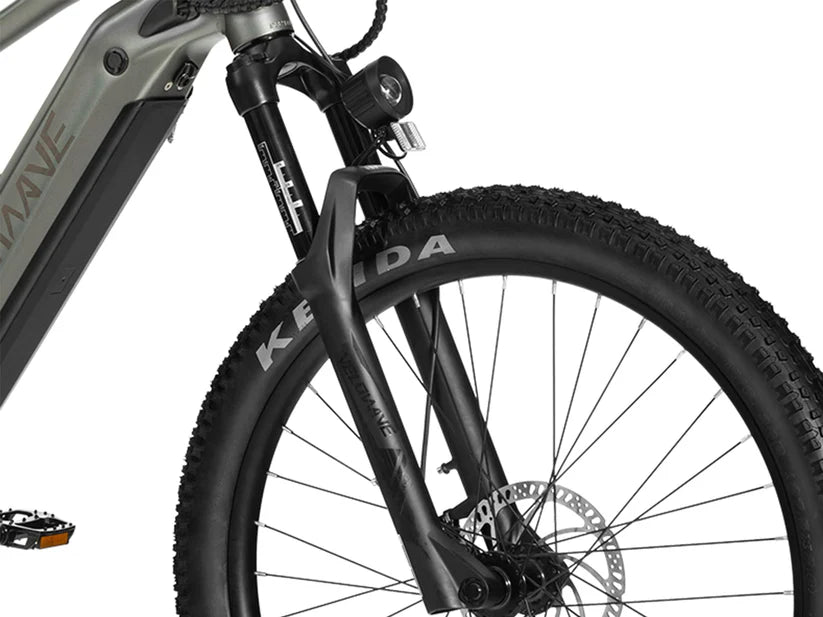

Navigate with confidence using the 140mm air suspension fork and 185X45 rear air suspension, offering adjustable settings for a smooth ride over any bumps.

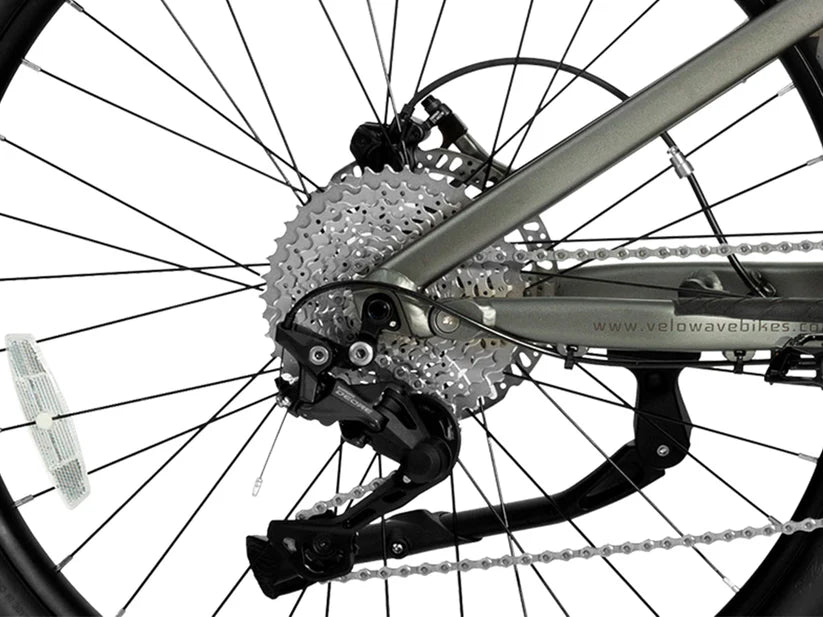

Precision Gear Shifts

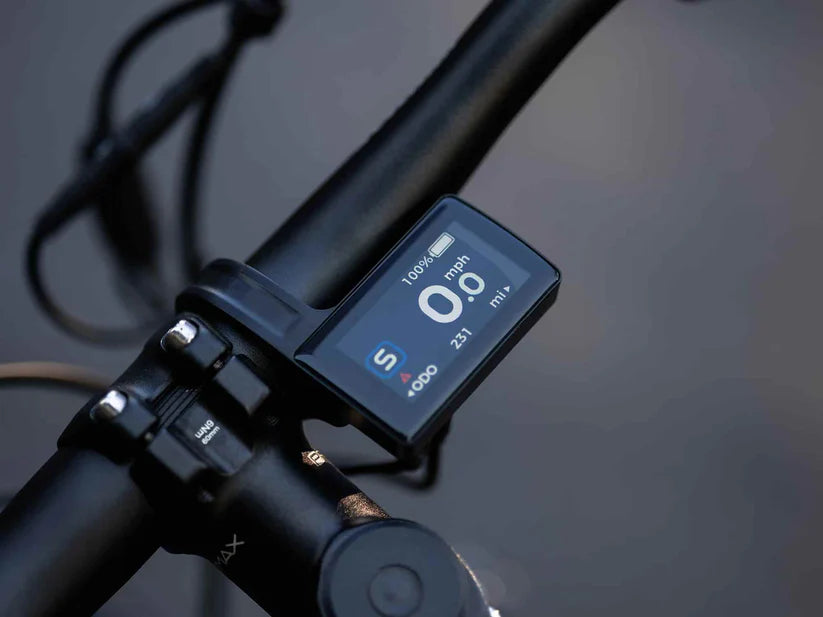

Dynamic Display
Convenient Additions
Size Chart
| Frame size | Rider Height | Inseam |
|---|---|---|
| 17" | 5'5" - 6'4" 165 - 192 cm |
31" - 35" 78 - 89 cm |
| 19" | 5'6" - 6'5" 168 - 195 cm |
33" - 36" 80 - 92 cm |
What's in the box
Safe Packaging
Specs & Size
| Size | 17'' | 19'' |
| Total Length | 2000mm | 2035mm |
| Head Tube Length | 150mm | 150mm |
| Seat Tube | 432mm | 470mm |
| Handlebar Height | 1110mm | 1110mm |
| Wheelbase | 1272mm | 1305mm |
| Standover Height | 750mm | 786mm |
| Reach | 469mm | 479mm |
| Seat Height Min/Max | 855mm/1033mm | 885mm/1063mm |
General
- Classes:Class 3(Ebikes can go up to 28mph with pedal assistance)
- Max Speed:Up to 28 MPH on Pedal Assist; 20 MPH on Throttle
- Range:60 Miles* on PAS, up to 70 Miles on Level 1, 40 Miles* on Throttle (Range Per Charge is measured under the conditions that power is sufficient, with a 75kg load, at 86°F(30°C), 70% humidity, on a level road, in pedal assist mode with level 1 assistance, and in pure electric riding mode by throttle. Actual results may vary based on differences in temperature, load, wind speed, road conditions and other factors.)
Frameset

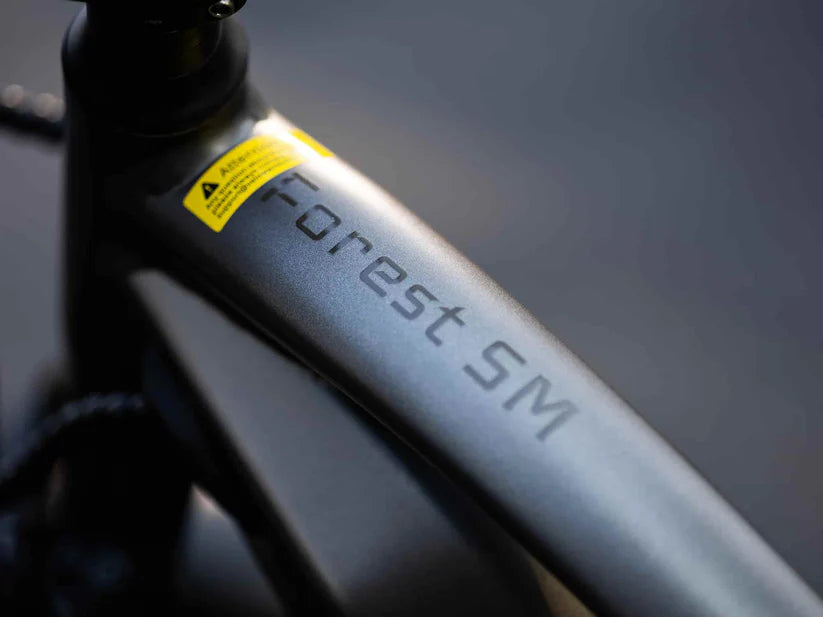

- Frame:6061 Aluminum Alloy with Internal Battery, with Front and Rear Suspension, Frame Travel 121 mm
- Fork:Air Suspension Fork with 140mm travel, with lockout

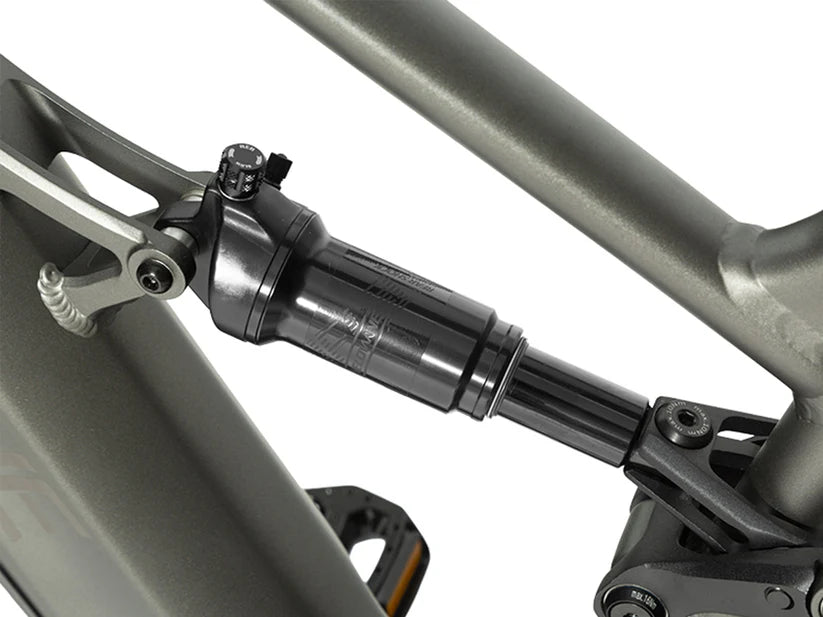

- Rear Suspension:185X45 air suspension with 42mm travel, with external rebound adjustment
Wheels
- Rim:Aluminum 27.5" 36H Front & Rear
- Front Wheel Spokes:Black Stainless 13G x 269/270 mm, Front and Rear
- Hubs:Disc Nutted Front / Rear Axles
- Tire:Kenda 27.5" x 2.8"
- Tire Size:27.5" x 2.8"
E-system
- Battery:Removable Internal Lithium-ion Battery 48V 15Ah (720Wh) with LG cells
- Charger:48V 3 Amp Charger, Approx. 5 Hour Charging

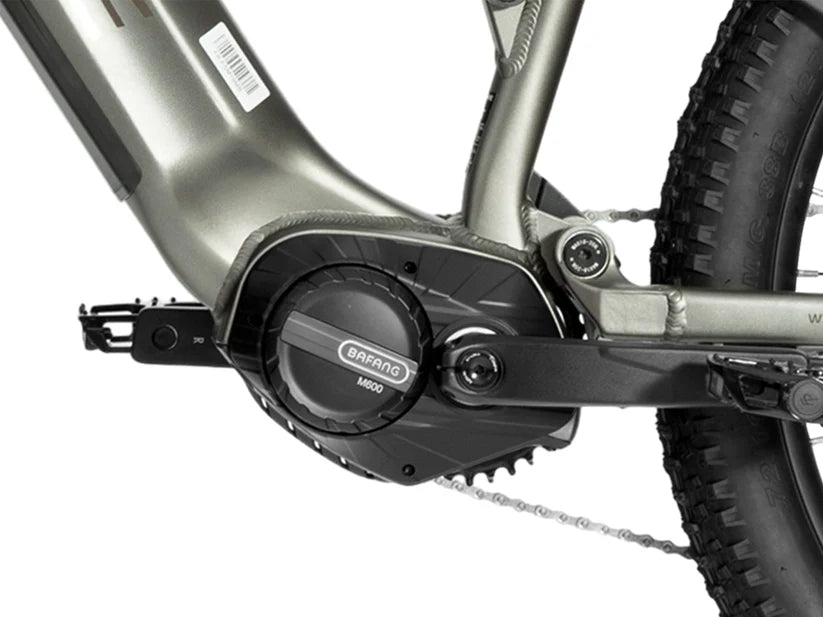

- Motor:500W （Peak 760W），130Nm
- Display:TFT Smart Easy Read Display with Backlight, Colorful screen
- Pedal Assist:6 Levels
- Sensor:Torque Sensor
- Throttle:Throttle on demand - Throttle from a complete stop
- Light:Front 48V LED Light 80 LUX; Rear Blinking Light
Drivetrain
- Shifter:Shimano 10-Speed Thumb Shift
- Pedal Assist:6 Levels
- Crankset:170mm w/ 38 T
- Freewheel:Shimano 11-42T, 10-Speed CASSETTE
- Pedals:Alloy Platform
- Chain:KMC 122 Link, 10-Speed
- Rear Derailleur:Shimano Deore RD-M4120 10-Speed
Components
- Saddle:Comfortable Saddle
- Seatpost:Forged Alloy, φ31.6x300mm
- Seat Clamp:φ35mm Quick Release
- Stem:Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 60mm, RISE: 6°
- Handlebar:Aluminum 31.8mm, Width 740mm
- Headset:Sealed Bearing Headset
- Grips:Ergonomic Comfort
- Brakes:Tektro Hydraulic Disc Brakes w/180mm discs, w/ power-cut-off function
- Kickstand:Included, Rear Mount
- Fenders:Not Included
- Rear Rack:Not Included
Weight
- Net Weight:64 lbs / 29.2 kg
- Gross Weight:91 lbs / 41.2 kg
- Battery Weight:8.7 lbs / 3.95 kg
- Max Load Capacity:385 lbs / 175 kg (including cargo)
Size
- Product Size:2035 x 1110 x 745 mm
- Packing Size:1700 x 300 x 830 mm
