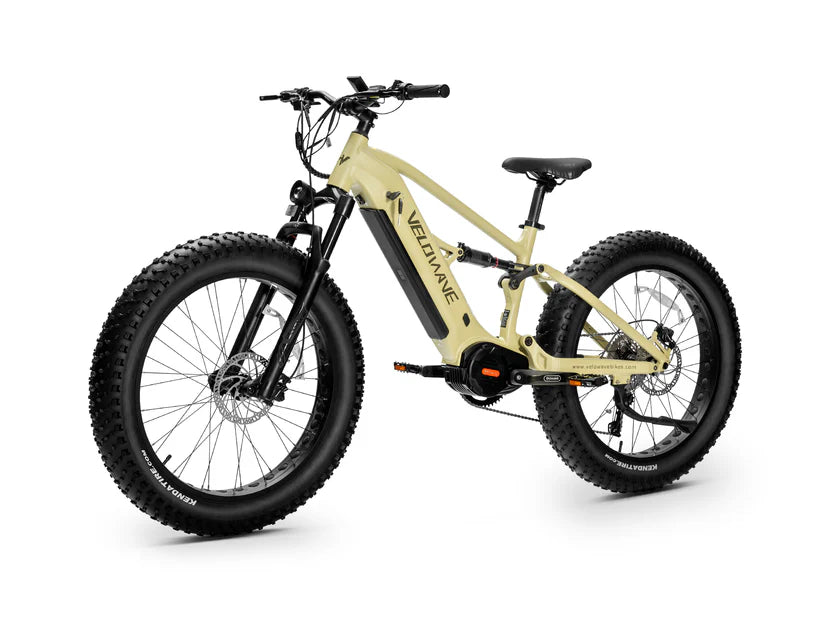

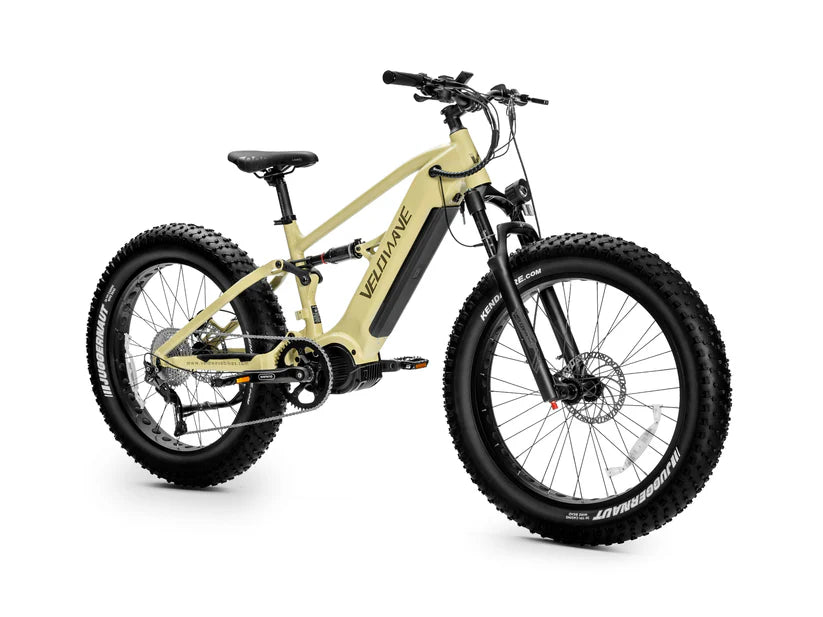

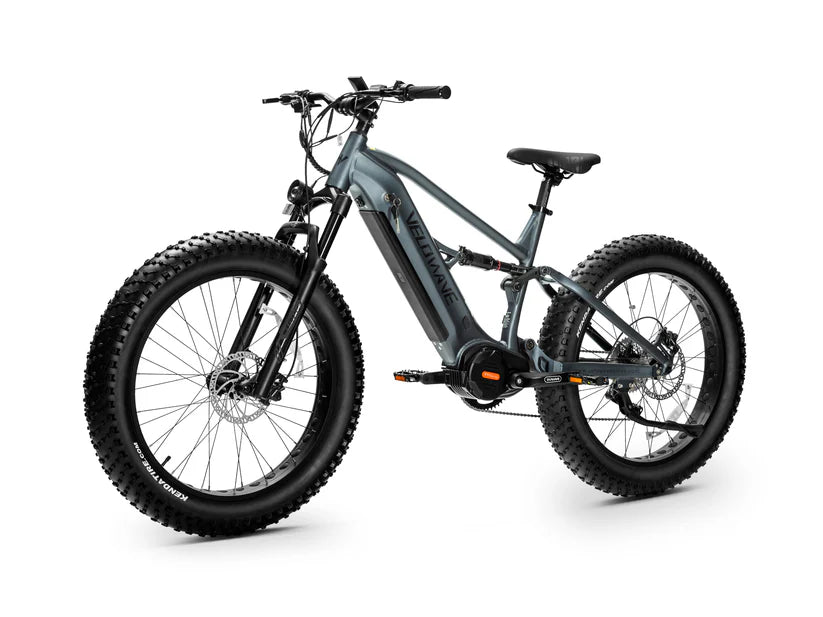

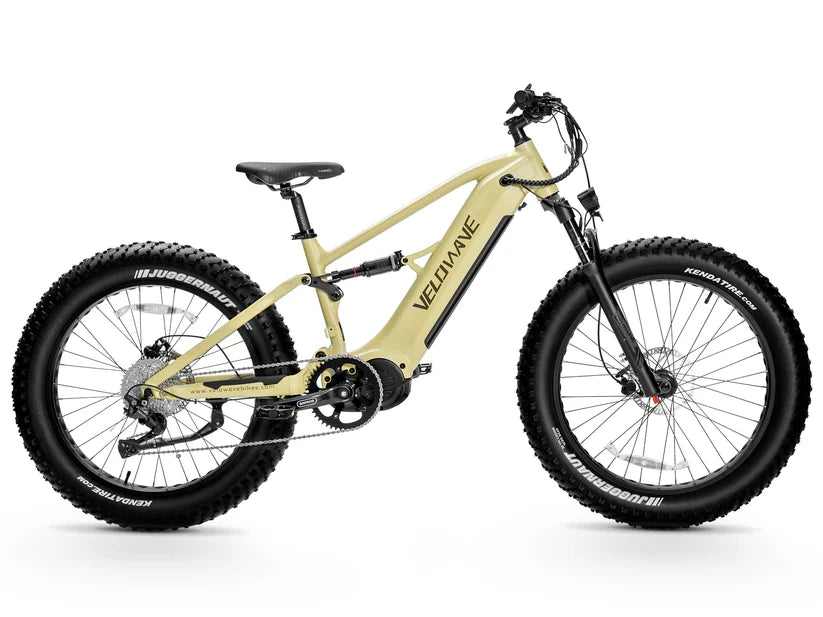

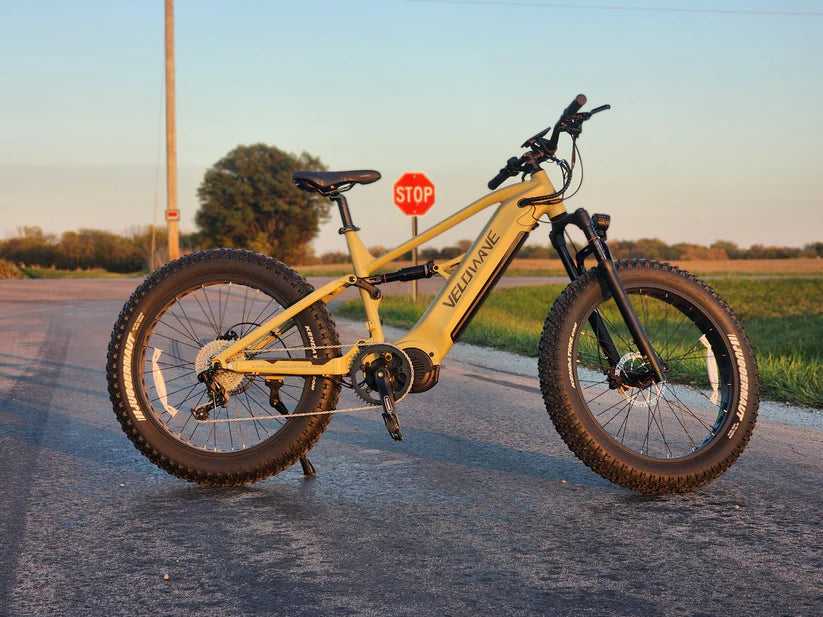

Brawny XM MTB Mountain Electric Bike
Description

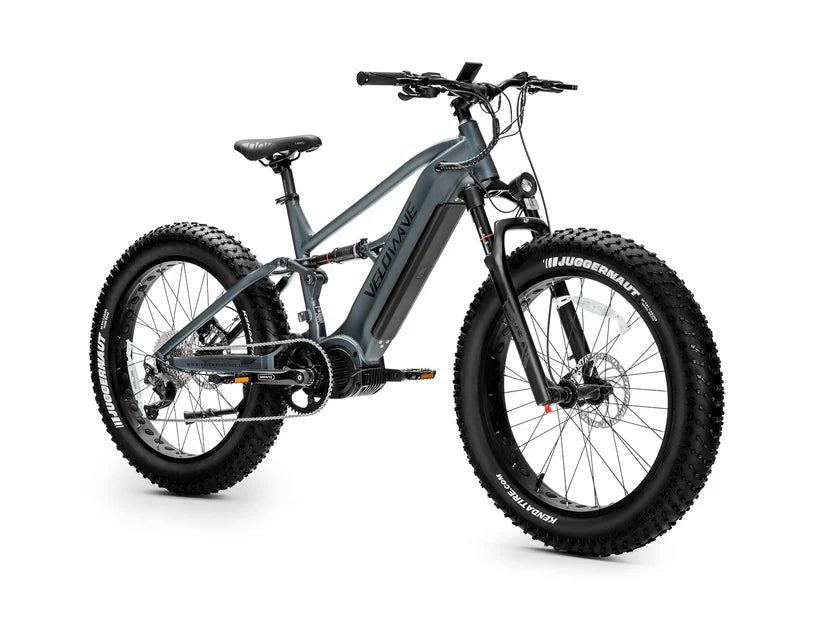

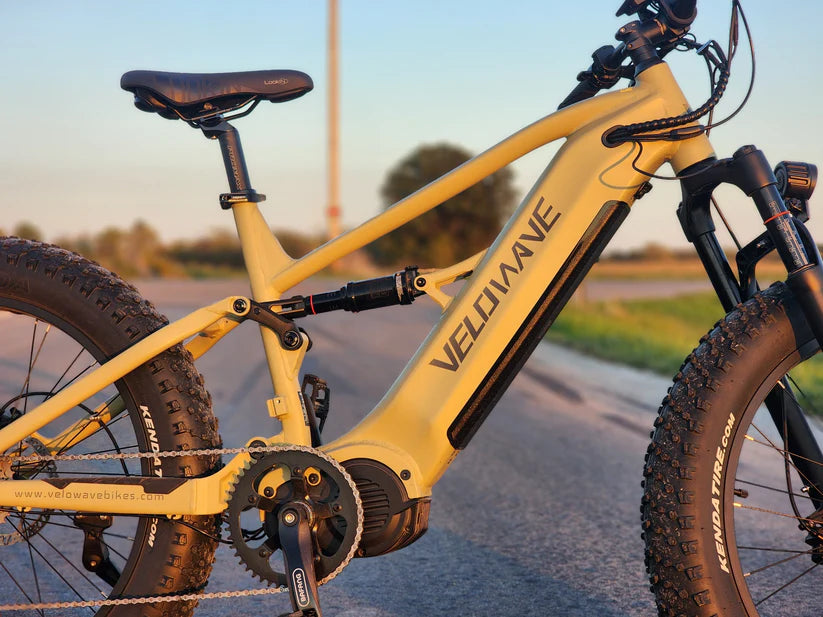

Unlock the freedom to conquer any terrain with the Brawny Electric Bike and redefine your limits with every ride. Crafted from lightweight aluminum alloy, the Brawny features a sleek frame with integrated front and rear suspension, offering 139mm of plush travel. It’s designed to absorb bumps and smooth out rough terrain, ensuring a comfortable and controlled ride.
Key Features
Unstoppable Power
Suspension and Brake
Smart Display and Speed
Long-Lasting Battery
Pedal & Gear System
Size Chart
| Frame size | Rider Height | Inseam |
|---|---|---|
| 17" | 5'5" - 6'4" 165 - 192 cm |
31" - 35" 78 - 89 cm |
| 19" | 5'6" - 6'5" 168 - 195 cm |
33" - 36" 80 - 92 cm |
What's in the box
Safe Packaging
Specs & Size
| Size | 17'' | 19'' |
| Total Length | 2087mm | 2100mm |
| Head Tube Length | 150mm | 150mm |
| Seat Tube | 432mm | 483mm |
| Handlebar Height | 1158mm | 1158mm |
| Wheelbase | 1318mm | 1331mm |
| Standover Height | 774mm | 823mm |
| Reach | 469mm | 475mm |
| Seat Height Min/Max | 841mm/1040mm | 890mm/1090mm |
General
- Classes:Class 3 (Ebikes can go up to 37mph with pedal assistance)
- Max Speed:Up to 37 MPH on Pedal Assist; 20 MPH on Throttle
- Range:Avg. 75 Miles* on PAS, up to 85 Miles on Level 1, 60 Miles* on Throttle (Range Per Charge is measured under the conditions that power is sufficient, with a 75kg load, at 86°F (30°C), 70% humidity, on a level road, in pedal assist mode with level 1 assistance, and in pure electric riding mode by throttle. Actual results may vary based on differences in temperature, load, wind speed, road conditions and other factors.)
Frameset
- Frame:6061 Alluminum Alloy with Internal Battery, with Front and Rear Suspension, Frame Travel 139 mm
- Fork:Air Suspension Fork with 100mm travel, with lockout

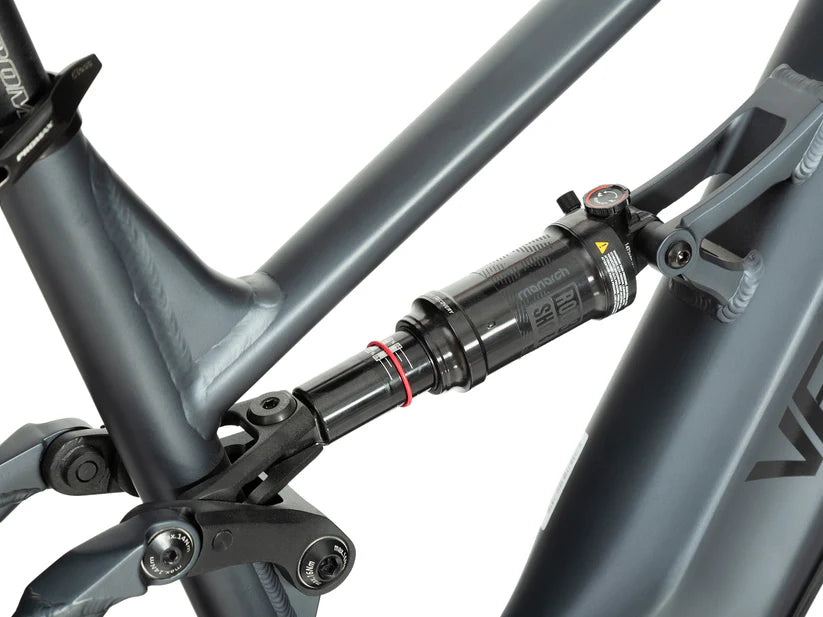

- Rear Suspension:Rockshox RS-MNR-R-C4 184X44 air spring with 44mm travel, with external rebound adjustment
Wheels
- Rim:Aluminum 26" 36H Front & Rear
- Front Wheel Spokes:Black Stainless 13G x 255/257 mm, Front and Rear
- Hubs:Disc Nutted Front / Rear Axles
- Tire:Kenda 26" x 4.8" Fat Tires
- Tire Size:26" x 4.8"
E-system

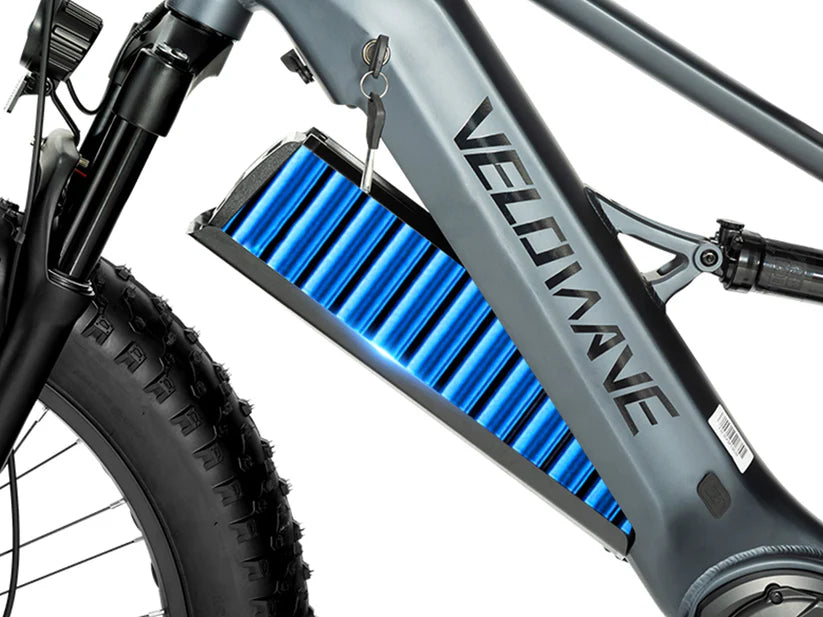

- Battery:Removable Internal Lithium-ion Battery 48V 20Ah (960Wh) with LG cells
- Charger:48V 3 Amp Charger, Approx. 7 Hour Charging

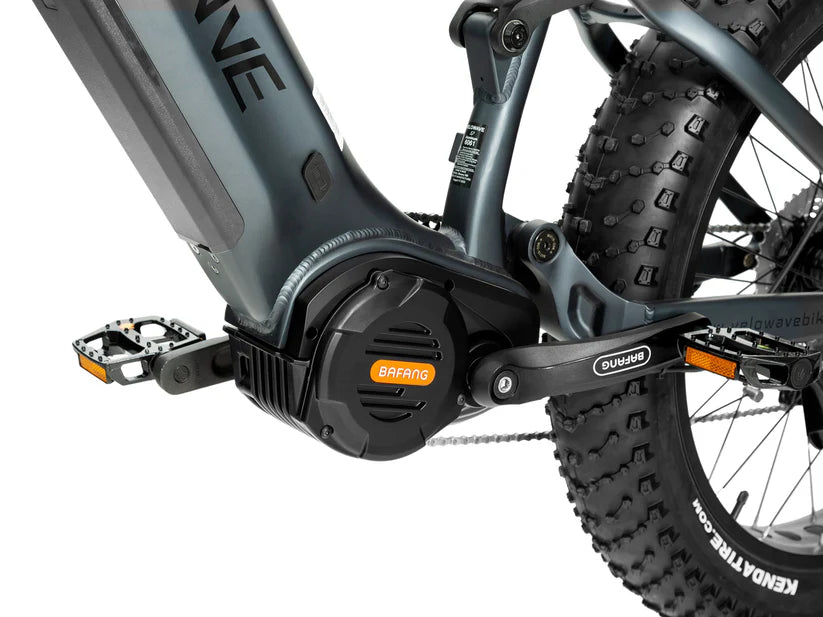

- Motor:1000W （Peak 1200W），160Nm
- Display:TFT Smart Easy Read Display with Backlight, Colorful screen
- Pedal Assist:6 Levels
- Sensor:Torque Sensor
- Throttle:Throttle on demand - Throttle from a complete stop
- Light:Front 48V LED Light 80 LUX; Rear Blinking Light
Drivetrain
- Shifter:Shimano 10-Speed Thumb Shift
- Pedal Assist:6 Levels
- Crankset:170mm w/ 48 T
- Freewheel:Shimano 11-42T, 10-Speed CASSETTE
- Pedals:Alloy Platform
- Chain:KMC 134 Link, 10-Speed

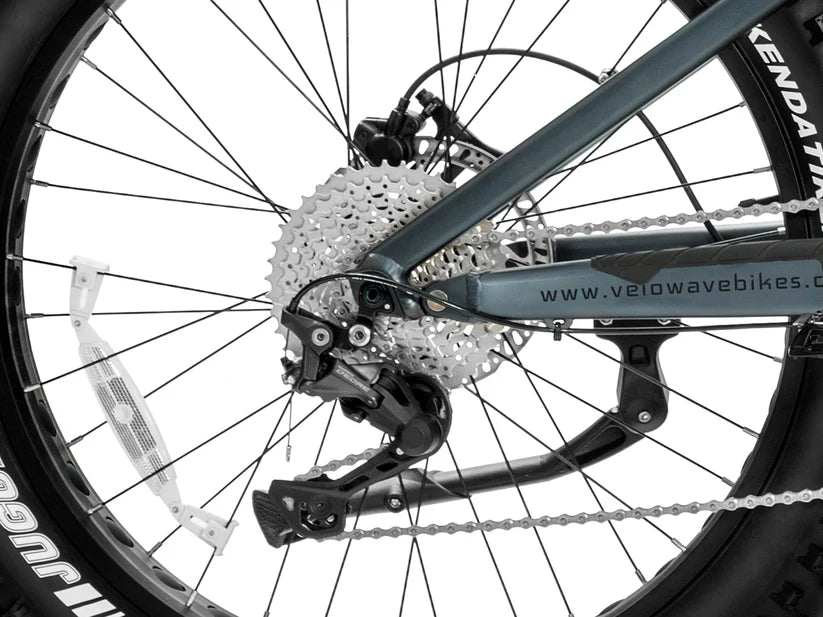

- Rear Derailleur:Shimano Deore RD-M4120 10-Speed
Components
- Saddle:Comfortable Wide Saddle
- Seatpost:Forged Alloy, φ31.6x300mm
- Seat Clamp:φ38.1mm Quick Release
- Stem:Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 60mm, RISE: 6°
- Handlebar:Aluminum Ø31.8mm, Width 740mm
- Headset:Sealed Bearing Headset
- Grips:Ergonomic Comfort
- Brakes:Tektro Hydraulic Disc Brakes w/180mm discs, w/ power-cut-off function
- Kickstand:Included, Rear Mount
- Fenders:Not Included
- Rear Rack:Not Included
Weight
- Net Weight:82 lbs / 37.2 kg (including battery)
- Gross Weight:111 lbs / 50.5 kg
- Battery Weight:11.4 lbs / 5.15 kg
- Max Load Capacity:385 lbs / 175 kg (including cargo)
Size
- Product Size:2100 x 1158 x 745 mm
- Packing Size:1700 x 350 x 900 mm
